CARRARO 20.11 139783 25kph

8 / 9

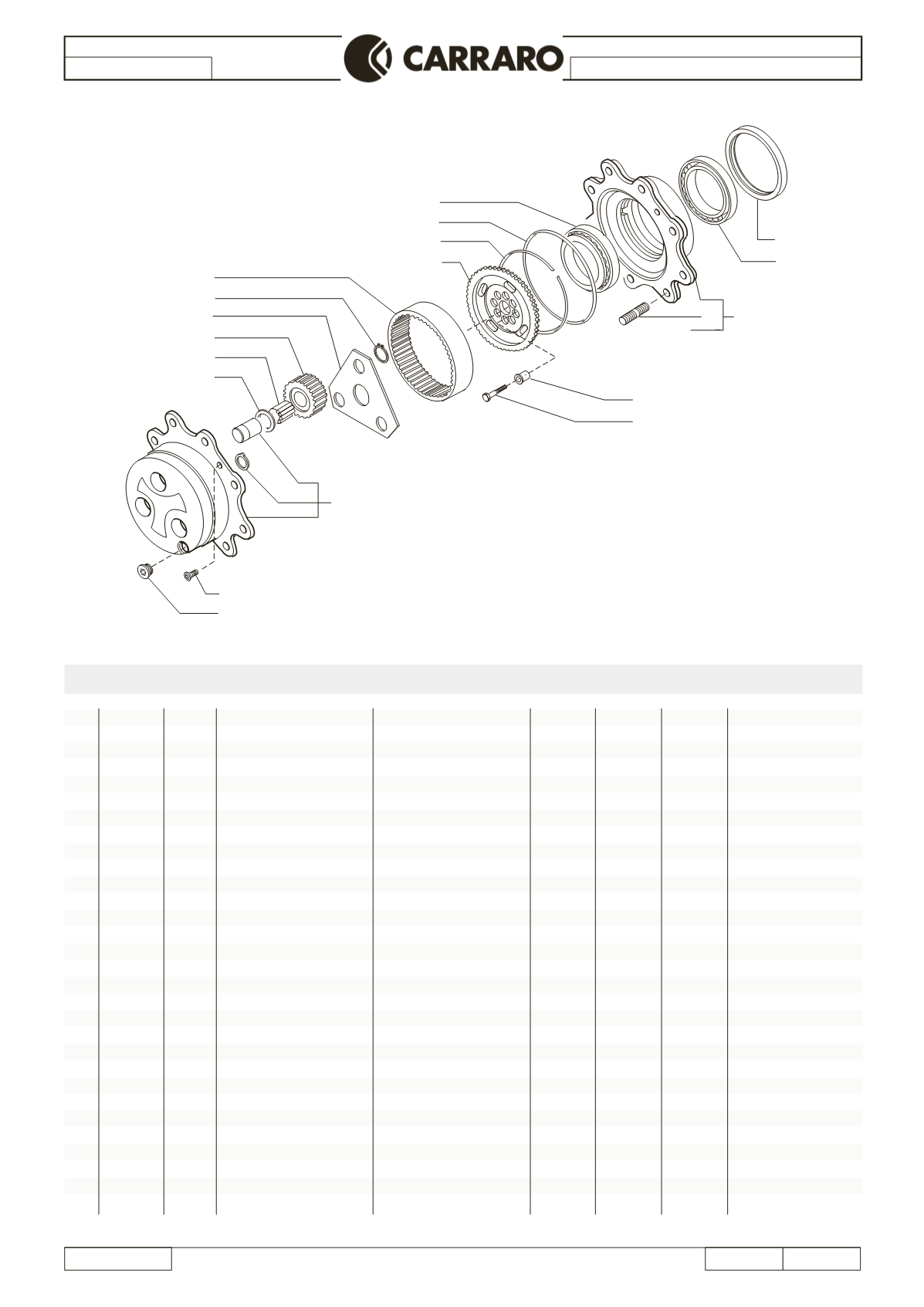

WHEEL HUB AND EPICYCLOIDAL REDUCTION GEAR
Pos. Ref. Descrizione Description Kit From S/N To S/N Note
* valid only for one wheel hub assy.
TAB. - 6.0.0
REVISION DATE - 00/00 P/N: CA355201
1 2 Anello di tenuta Oil seal ring
2 4 Cuscinetto Bearing
3 8* Prigioniero Stud
4 2 Kit mozzo ruota Wheel hub kit
5 12 Bussola di centraggio Centering bush
6 12 Vite M10x45 Bolt M10x45
7 2 Anello OR O.ring
8 2 Anello d'arresto Lockring
9 2 Mozzo fermo corona Wheel carrier
10 2 Corona dentata Crown gear
11 6 Anello seeger D.34 Snap ring D.34
12 2 Ralla Thrust washer
13 6 Ingranaggio Z=23 Gear Z=23
14 18 Rullini (a decine) Needle bearing (by tens)
15 6 Ralla Thrust washer
16 2 Kit treno portasatelliti Planetary carrier assy
17 4 Vite M8x20 Bolt M8x20
18 2 Tappo M30x2 Plug M30x2
047700
118378
123563 065964
065964
127994
128658
028603
125344
128653
125339
024789
123318
125336
028284
115634
065774
020490
125280
1
2
3 4
5
6
2
7
8
9
10
11
12
13
14
15
16
17
18
AXLE 20.11 REF.139783
